Balustrade
| Thumbnail(click to enlarge) | Filename | Description | Material | Height | Diam | Download DWG | Download PDF | Download RFA |
|---|---|---|---|---|---|---|---|---|
|

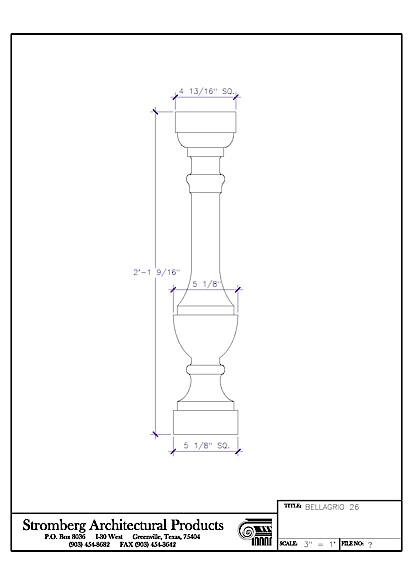

BELLAGRIO_26 | Baluster |
All | 2' 1 9/18" | 5 1/8" |
|
|
|
|

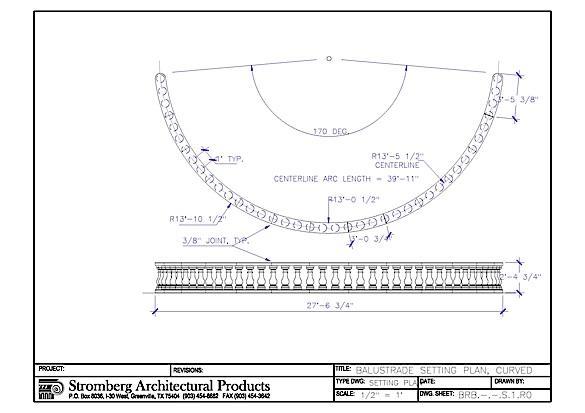

BRB.-.-.S.1.R0 | Curved |
All | 2' 4 3/4" | 27' 6 3/4" |
|
|
|
|

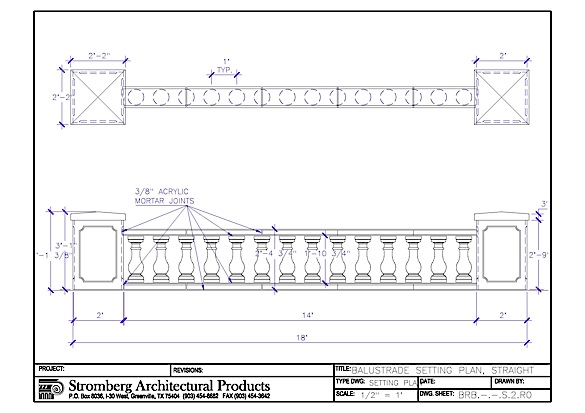

BRB.-.-.S.2.R0 | Straight |
All | 3' 1" | 18' |
|
|
|
|

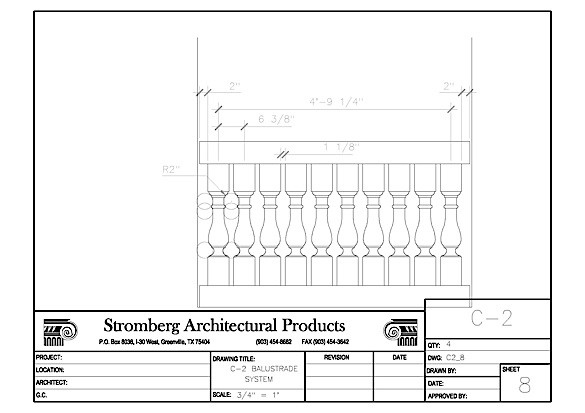

C2_8 | All |
|
|
||||
|

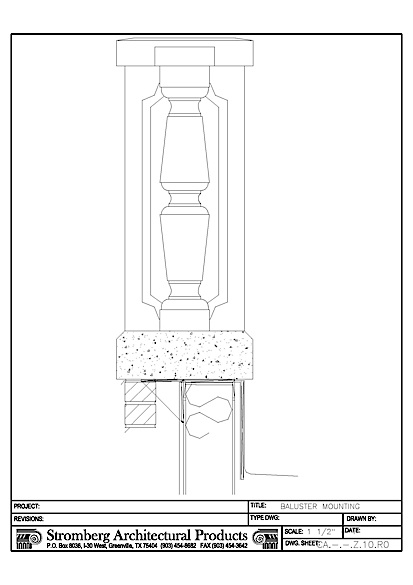

CA.-.-.Z.10.RO | All |
|
|
||||
|

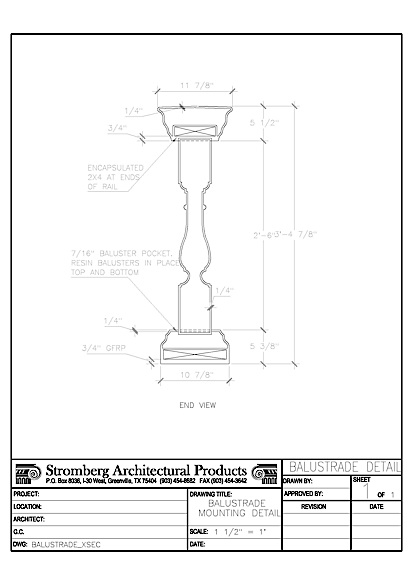

ENG_BALUSTRADE_XSEC | Mounting Type Detail |
All | 3' 4 7/8" | 11 7/8" |
|
|
|
|

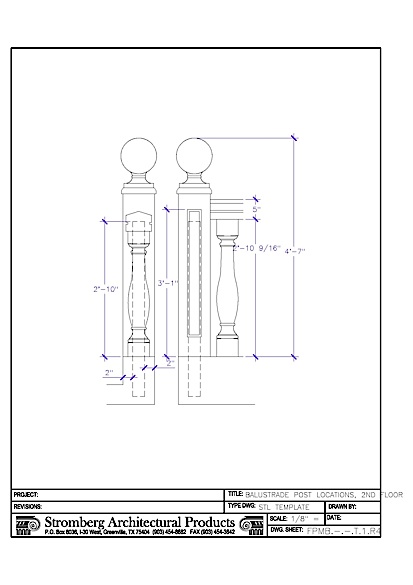

FPMB.1.1.T.1.R4 | Post Locations |
All | 4' 7" |
|
|
||
|

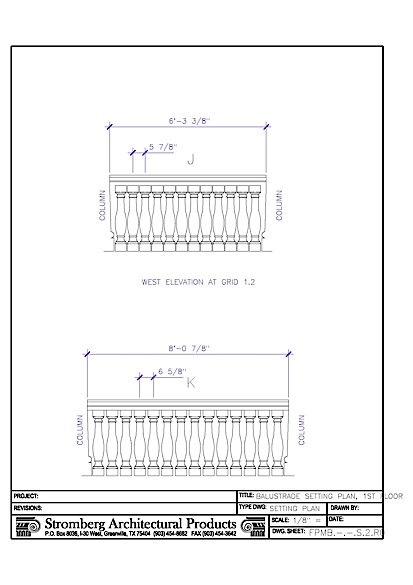

FPMB.-.-.S.2.R0 | Custom Setting Plan |
All |
|
|
|||
|

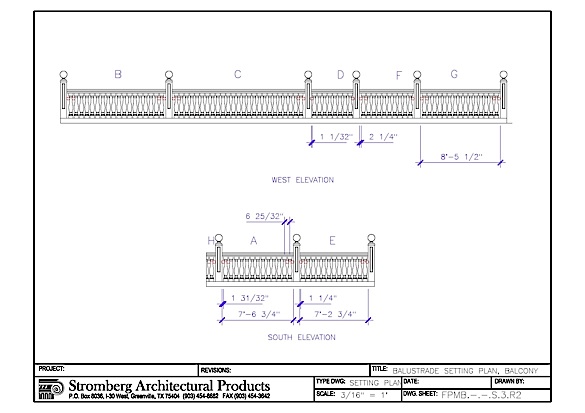

FPMB.-.-.S.3.R2 | Custom Setting Plan Balcony |
All |
|
|
|||
|

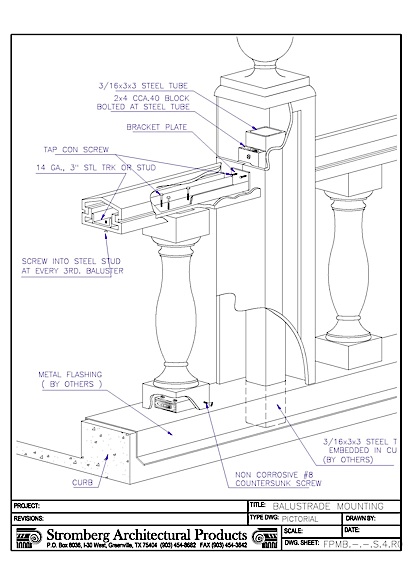

FPMB.-.-.S.4.R0 | Pictorial |
All |
|
|
