Installation
| Thumbnail (click to enlarge) |
Filename | Description | Material | Height | Diam | Download DWG |
Download |
Download RFA |
|---|---|---|---|---|---|---|---|---|
 |

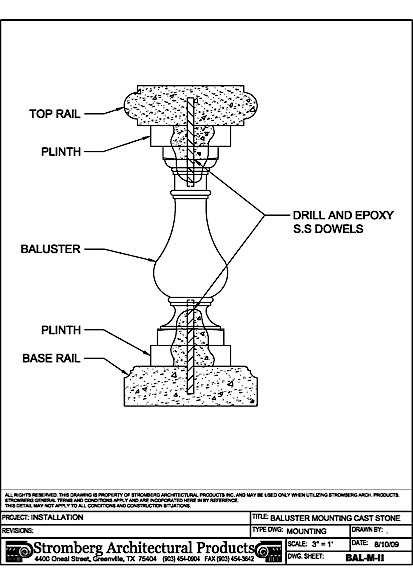

Baluster Mounting - Cast Stone | Epoxy and dowel placement | Cast Stone |
|
|
|||
 |

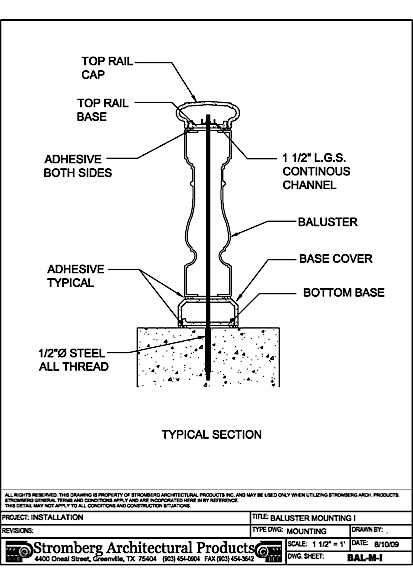

Baluster Mounting I | Balustrade mounting half inch steel mount | All |
|
|
|||
 |
Balustrade - Field Assembly | Balustrade field assembly for bottom mounting plate |
|
|
||||
 |

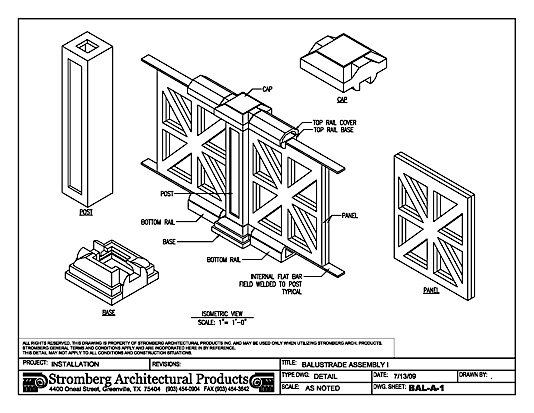

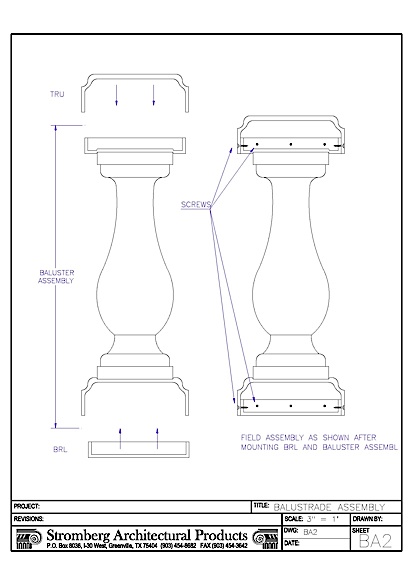

Balustrade Assembly I | Balustrade pier with cap and panels | All |
|
|
|||
 |

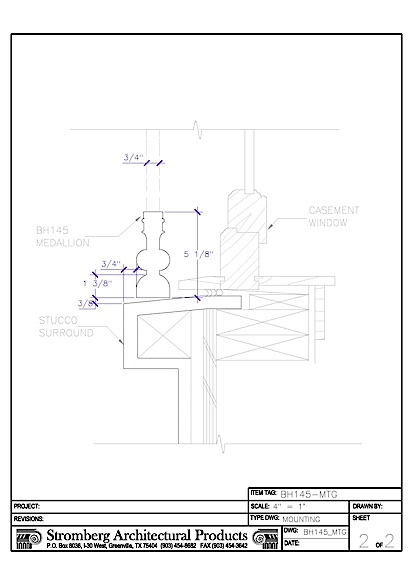

BH145_MTG | BH145 Medallion Mounting Drawing to Stucco Surround |
5 1/8 |
|
|
|||
 |

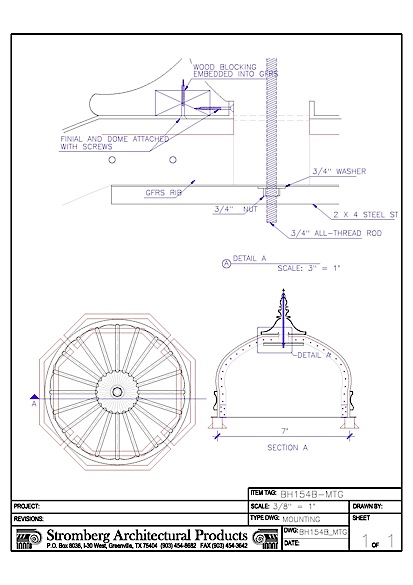

BH154B_MTG | Dome attachment with gfrs |
|
|
||||
 |

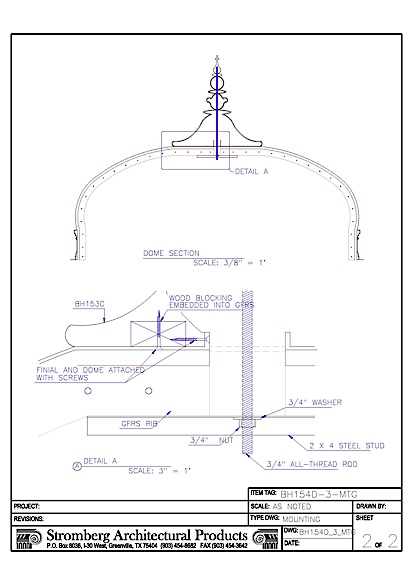

BH154D_3_MTG | Dome cap finial detail a |
|
|
||||
 |

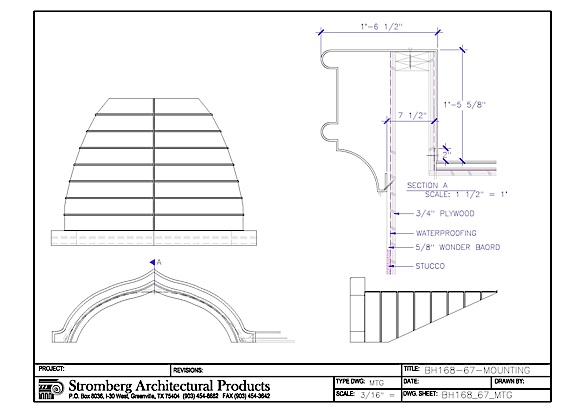

BH168_67_MTG | Center point dome cross section |
|
|
||||
 |

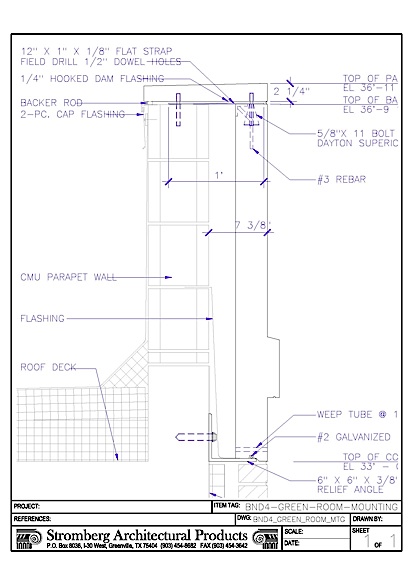

BND4_GREEN_ROOM_MTG | Cornice panel mounting |
|
|
||||
 |

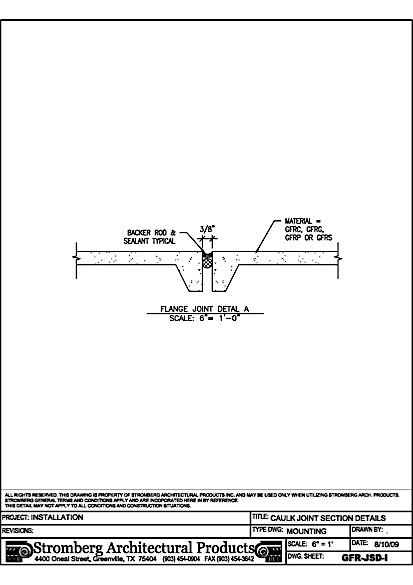

Caulk Joint Section Details | Caulk joint section detail | All |
|
|
|||
 |

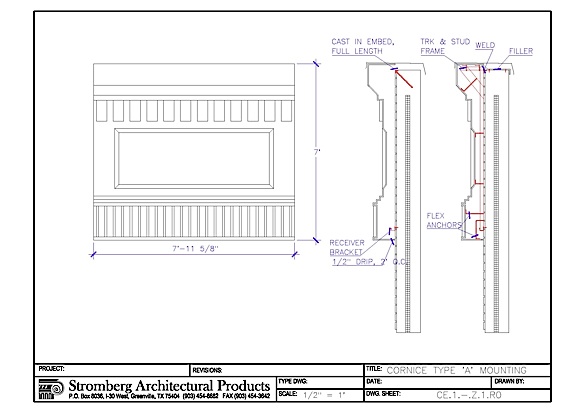

CE.1.-.Z.1.R0 | Cornice mounting with exposed view |
|
|
||||
 |

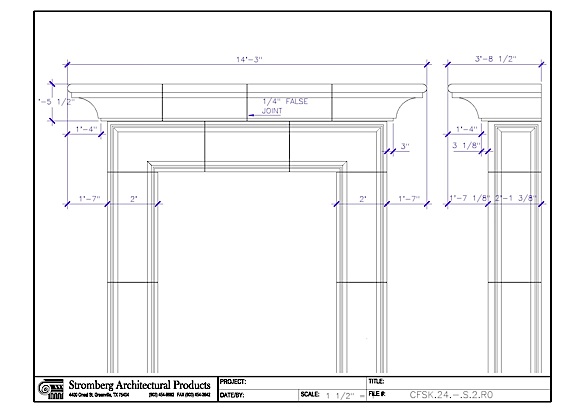

CFSK.24.-.S.2.R0 | Door surround molding layout |
|
|
||||
 |

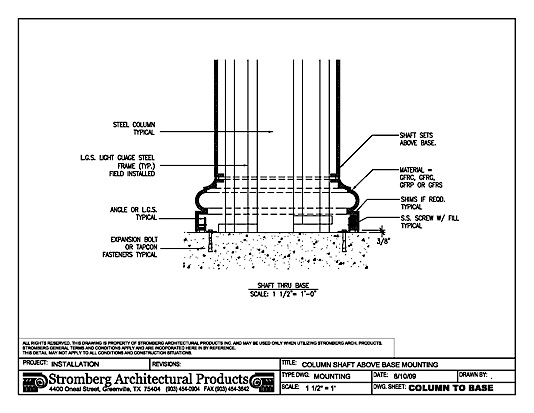

Column Base - Shaft Above Base | Exterior column shaft base mounting | All |
|
|
|||
 |

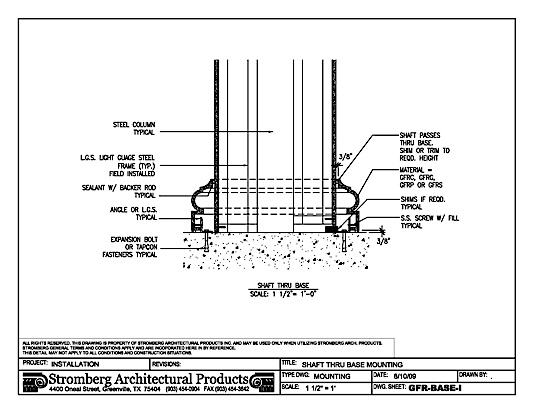

Column Base - Shaft Thru Base | Exterior shaft column through base | All |
|
|
|||
 |

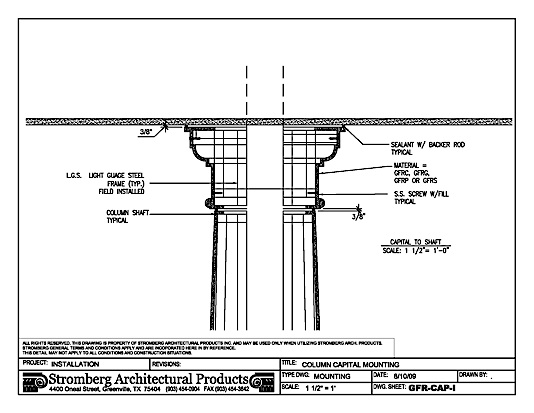

Column Capital Mounting | Column mounting with capital | All |
|
|
|||
 |

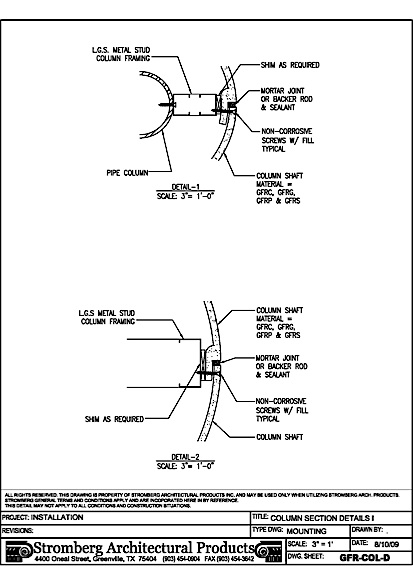

Column Section Details I | Crosscut of column joint detail 1 | All |
|
|
|||
 |

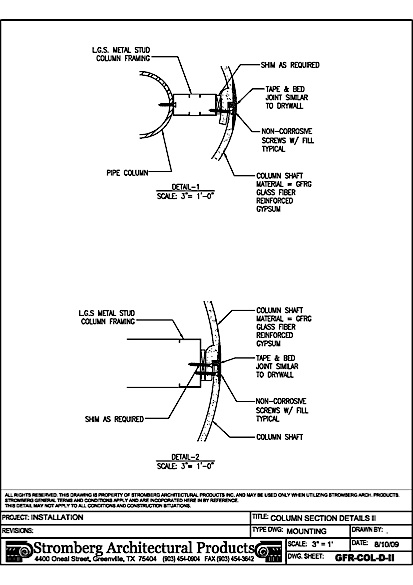

Column Section Details II | Crosscut of column joint detail 2 | All |
|
|
|||
 |

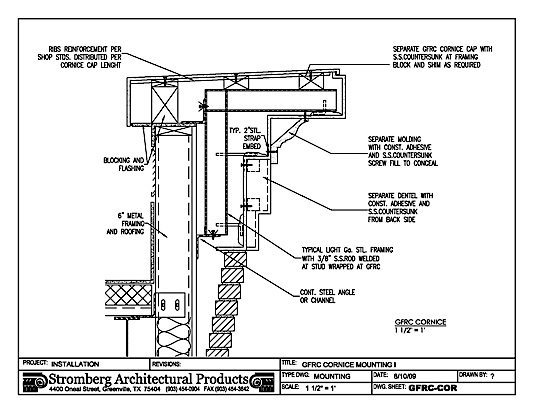

Cornice - GFRC Mounting I | GFRC cornice cross-sections detail | GFRC |
|
|
|||
 |

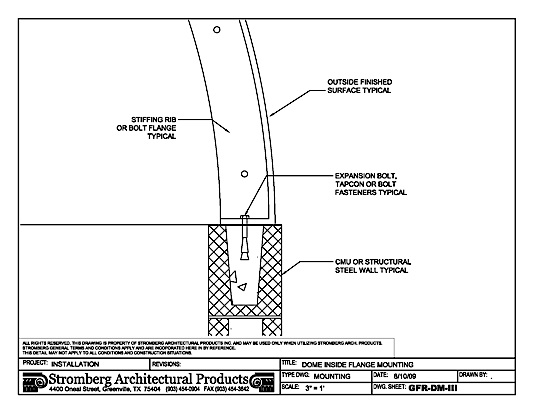

Dome - Inside Flange Mounting | Cross-section of inside dome flange mounting | All |
|
|
|||
 |
Dome - Light Cove Mounting | Cross section of decorative lighting in dome cove | All |
|
|
|||
 |

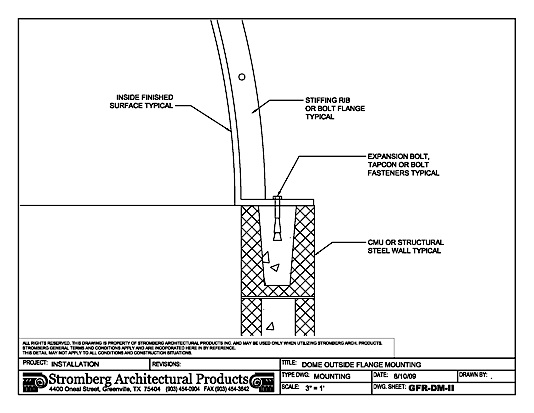

Dome - Outside Flange Mounting | Outside dome mounting flange | All |
|
|
|||
 |

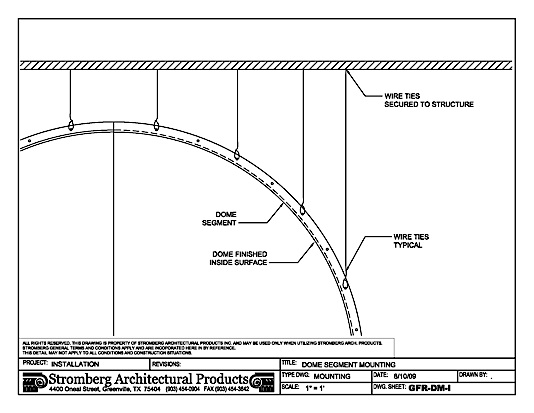

Dome - Segment Mounting | Cable support for dome construction | All |
|
|
|||
 |

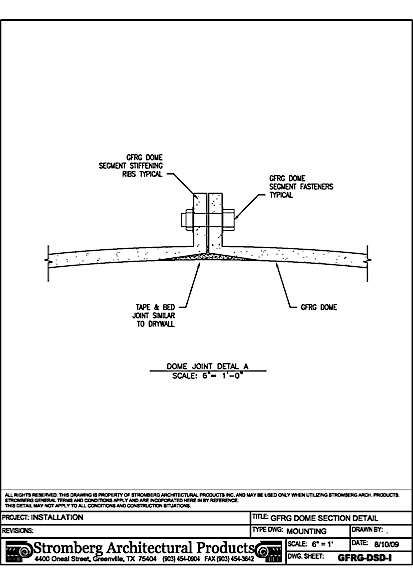

Dome Section Detail - GFRG | Joint detail of segment fasteners in gfrg | GFRG |
|
|
|||
 |

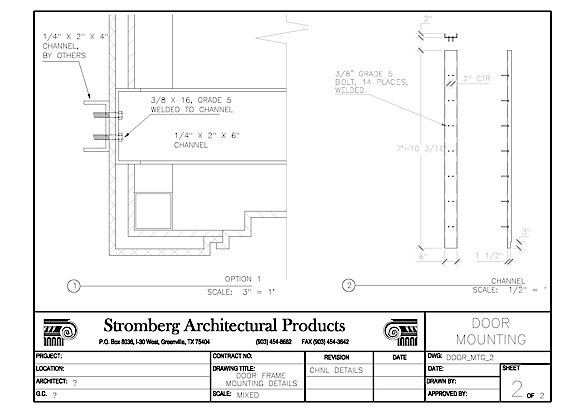

DOOR_MTG_2 | Door frame mounting and welds |
|
|
||||
 |

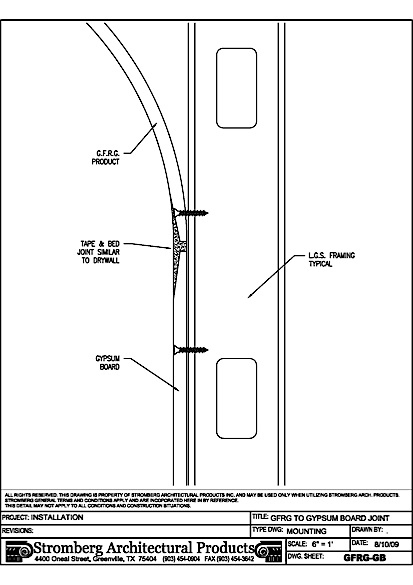

GFRG to Gypsum Board Joint | GFRG arch base mounting to gypsum board joint | GFRG |
|
|
|||
 |

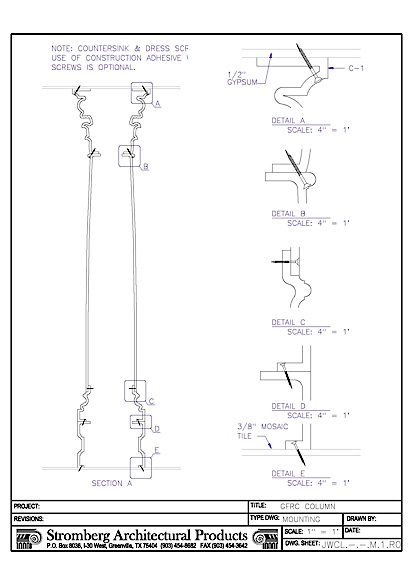

JWCL.-.-.M.1.R0 | Detail A through E of screw mounts in gfrc column |
|
|
||||
 |
JWFP.-.-.A.2.R0 | Countersink assembly |
|
|
||||
 |

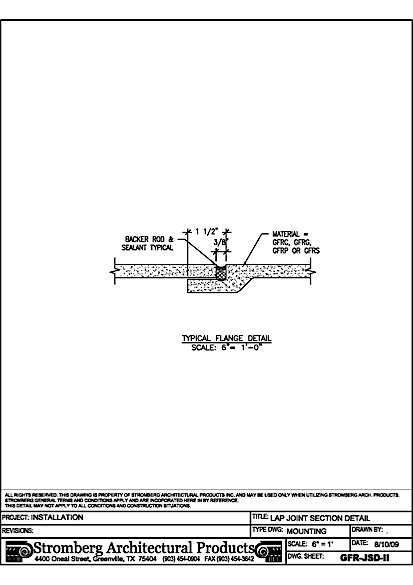

Lap Joint - Section Detail | Cross-section lap joint caulking | All |
|
|
|||
 |

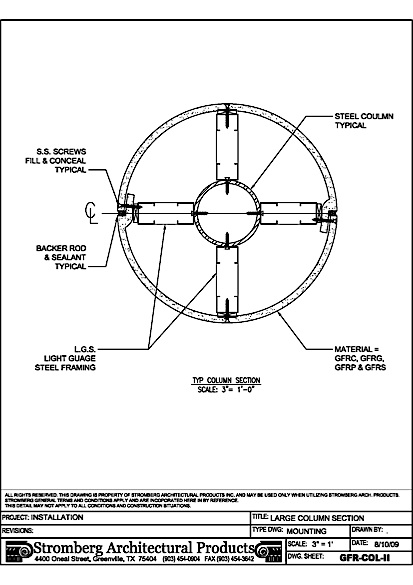

Large Column - Section | Top view cross-section of column mounting | All |
|
|
|||
 |

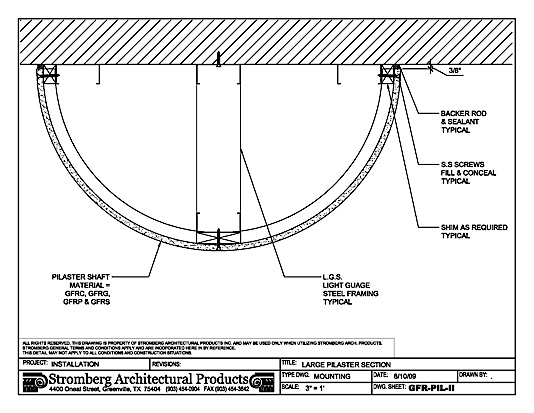

Large Pilaster - Section | Fuax pilaster mounting in gfrc and gfrg | All |
|
|
|||
 |

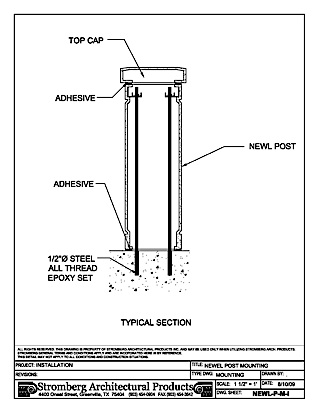

Newel Post - Mounting |
|
All |
|
|
|||
 |

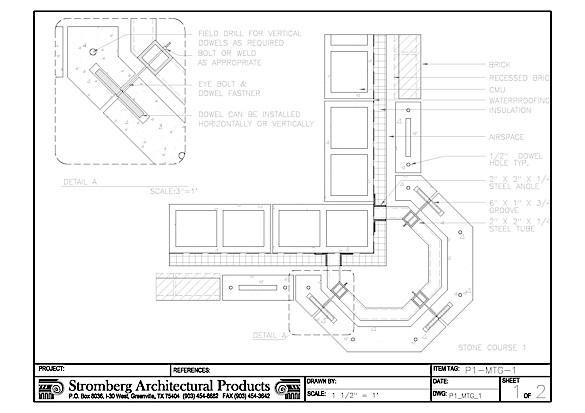

P1_MTG_1 | Decorative corner piece mounting |
|
|
||||
 |

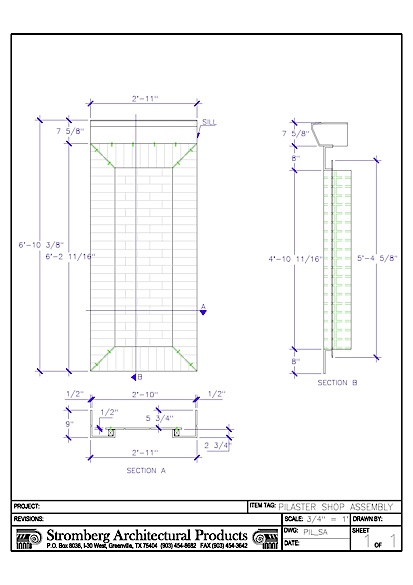

PIL_SA | Pilaster shop assembly layout |
|
|
||||
 |

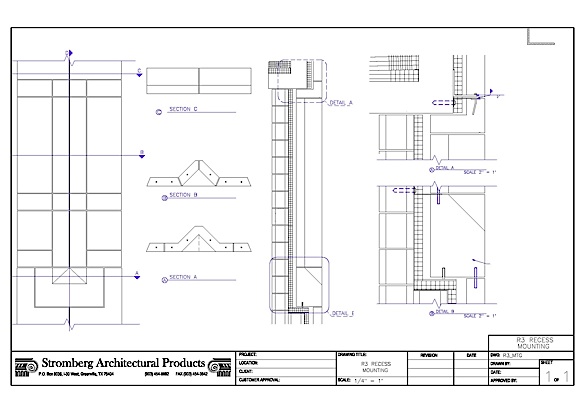

R3_MTG | Recess mounting of cornice panels |
|
|
||||
 |

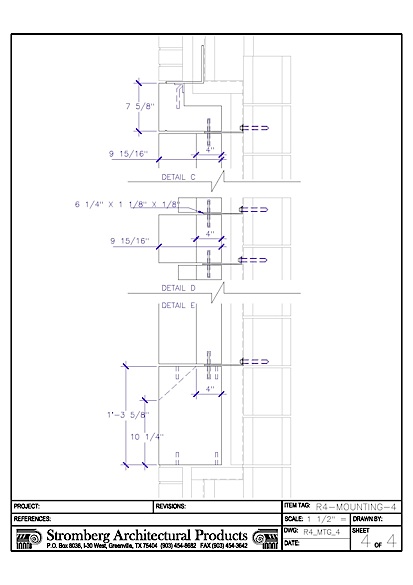

R4_MTG_4 | Various detail drawings of cornice mounting |
|
|
||||
 |

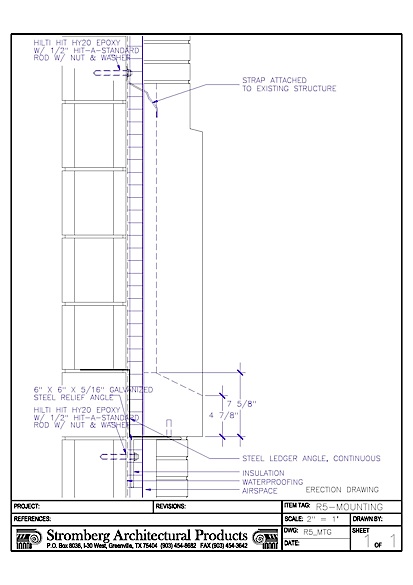

R5_MTG | Erection drawing of cornice mounting |
|
|
||||
 |
SL_MTG | Skylight flange detail drawing |
|
|
||||
 |

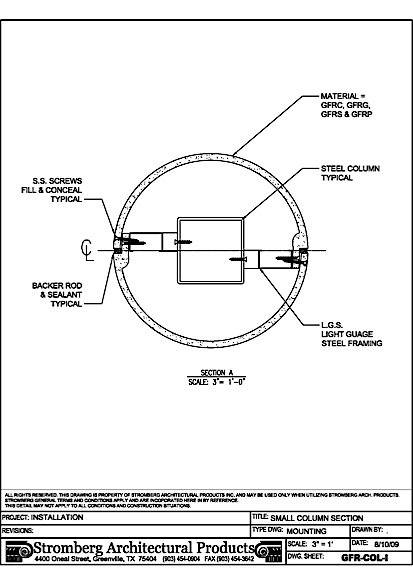

Small Column - Section | Top view cross-section of column mounting | All |
|
|
|||
 |

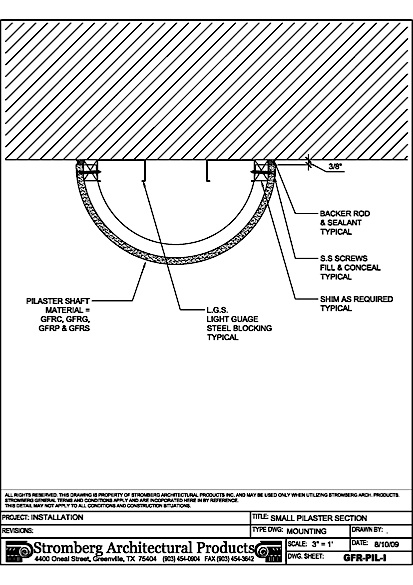

Small Pilaster - Section | Fuax pilaster mounting in gfrc and gfrg | All |
|
|
|||
 |

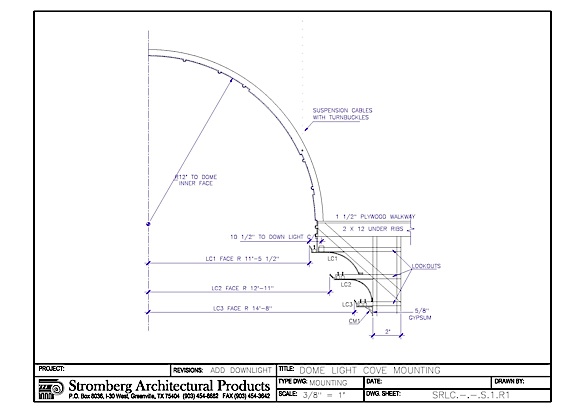

SRLC.-.-.S.1.R1 | Light cove mounting for dome |
|
|
||||
 |

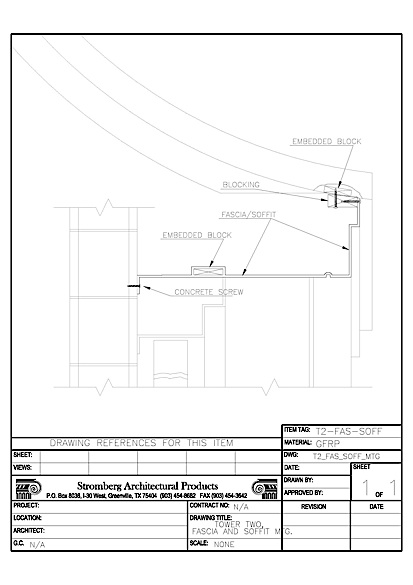

T2_FAS_SOFF_MTG | GFRP screw points for mounting |
|
|
||||
 |

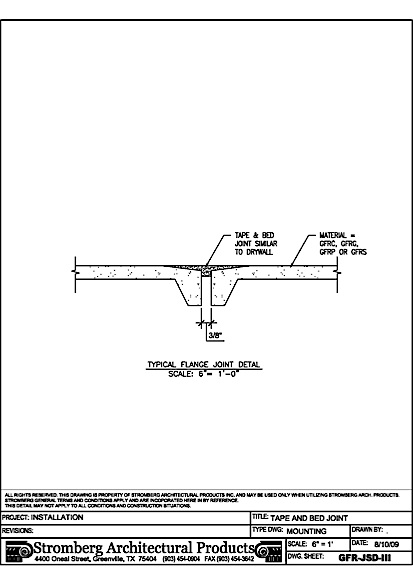

Tape and Bed Joint | Tape and bed joint flange detail | All |
|
|
|||
 |

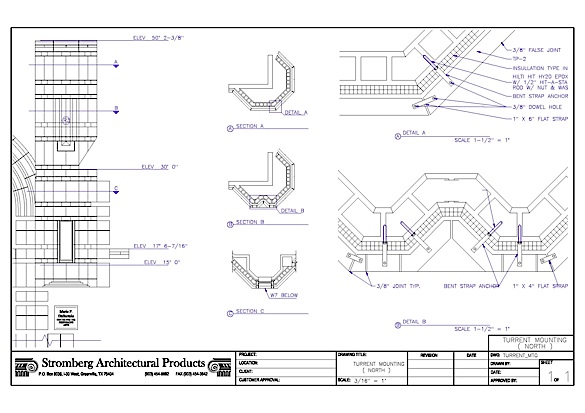

TURRENT_MTG | Mounting detail for turrent |
|
|
||||
 |

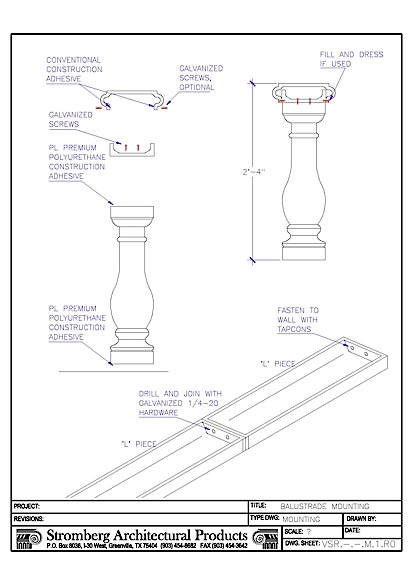

VSR.-.-.M.1.R0 | Balustrade mounting |
|
|
||||
 |

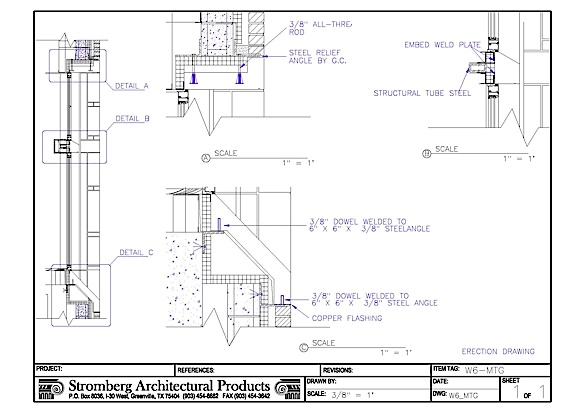

W6_MTG | Erection drawing for cornice mounting |
|
|
||||
 |
XX_AHSG.-.-.M.2.R0 | GFRC mounting of outside trim |
|
|
