Installation
| Thumbnail(click to enlarge) | Filename | Description | Material | Height | Diam | Download DWG | Download PDF | Download RFA |
|---|---|---|---|---|---|---|---|---|
|

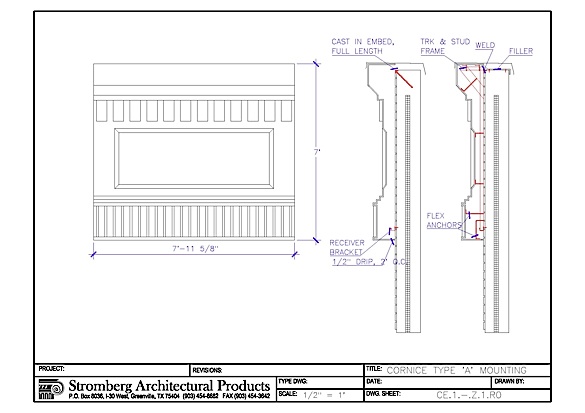

CE.1.-.Z.1.R0 | Cornice mounting with exposed view |
|
|
||||
|

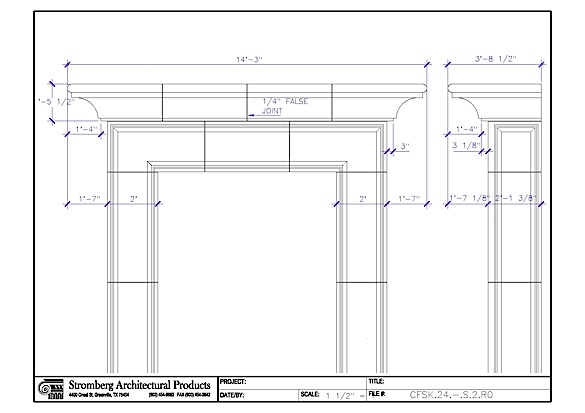

CFSK.24.-.S.2.R0 | Door surround molding layout |
|
|
||||
|

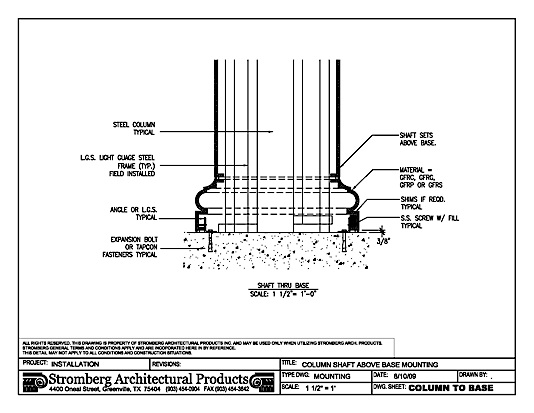

Column Base – Shaft Above Base | Exterior column shaft base mounting |
All |
|
|
|||
|

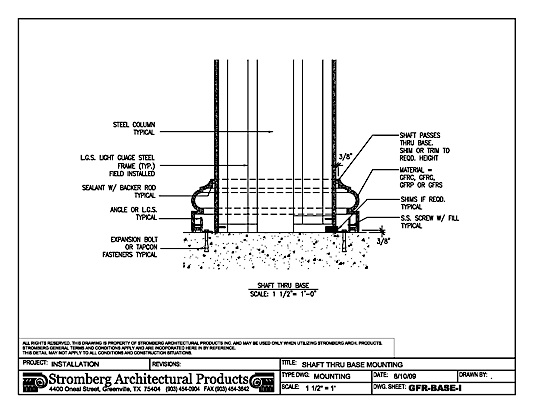

Column Base – Shaft Thru Base | Exterior shaft column through base |
All |
|
|
|||
|

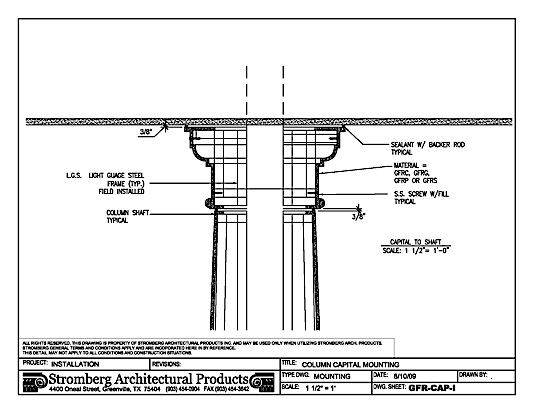

Column Capital Mounting | Column mounting with capital |
All |
|
|
|||
|

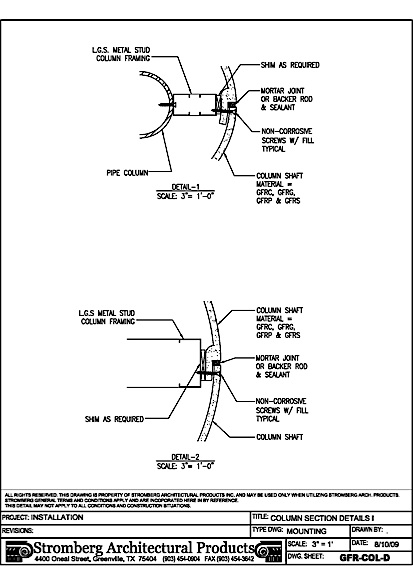

Column Section Details I | Crosscut of column joint detail 1 |
All |
|
|
|||
|

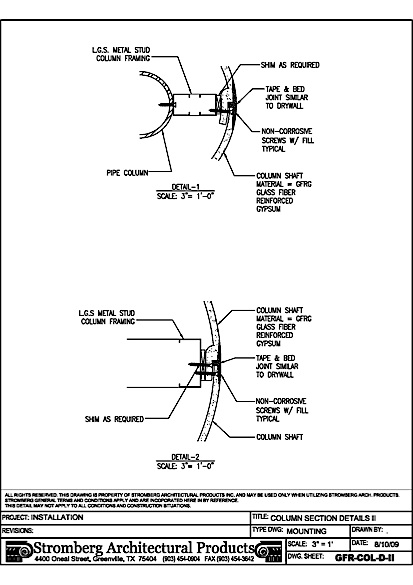

Column Section Details II | Crosscut of column joint detail 2 |
All |
|
|
|||
|

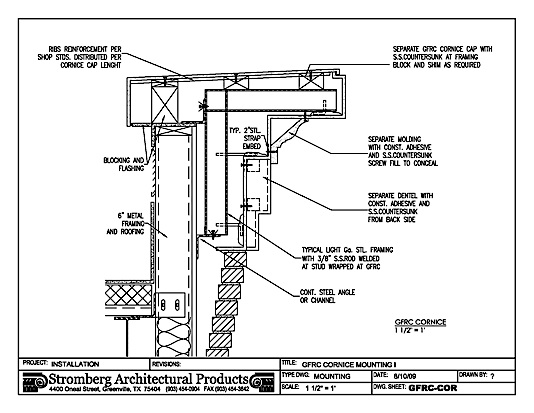

Cornice – GFRC Mounting I | GFRC cornice cross-sections detail |
GFRC |
|
|
|||
|

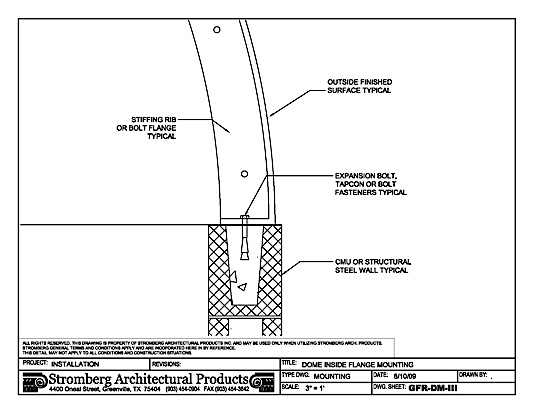

Dome – Inside Flange Mounting | Cross-section of inside dome flange mounting |
All |
|
|
|||
|

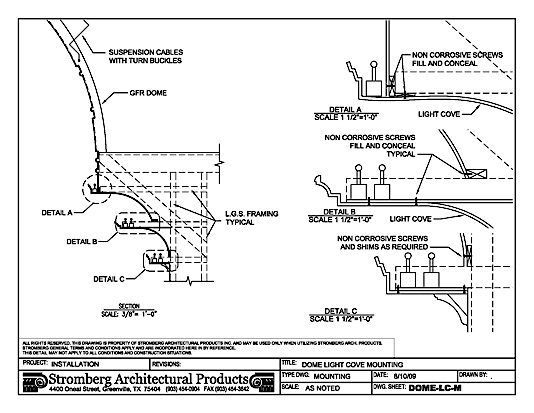

Dome – Light Cove Mounting | Cross section of decorative lighting in dome cove |
All |
|
|
