Installation
| Thumbnail(click to enlarge) | Filename | Description | Material | Height | Diam | Download DWG | Download PDF | Download RFA |
|---|---|---|---|---|---|---|---|---|
|
Dome Section Detail – GFRG | Joint detail of segment fasteners in gfrg |
GFRG |
|
|
|||
|

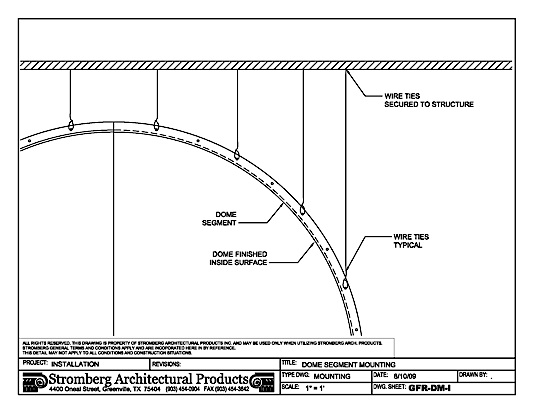

Dome – Segment Mounting | Cable support for dome construction |
All |
|
|
|||
|

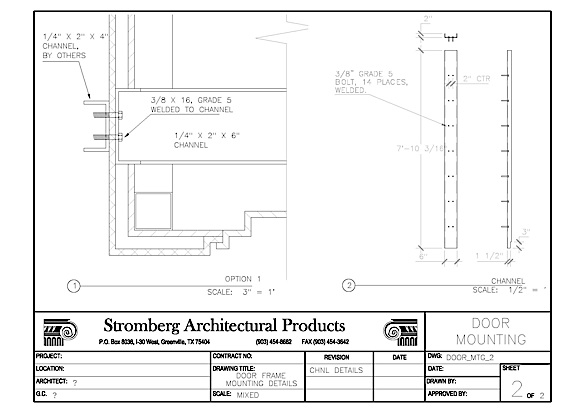

DOOR_MTG_2 | Door frame mounting and welds |
|
|
||||
|
GFRG to Gypsum Board Joint | GFRG arch base mounting to gypsum board joint |
GFRG |
|
|
|||
|

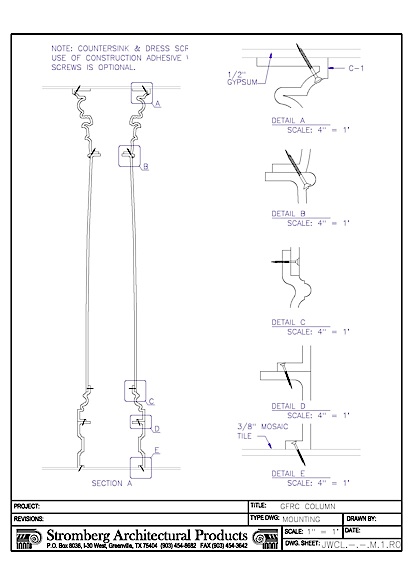

JWCL.-.-.M.1.R0 | Detail A through E of screw mounts in gfrc column |
|
|
||||
|

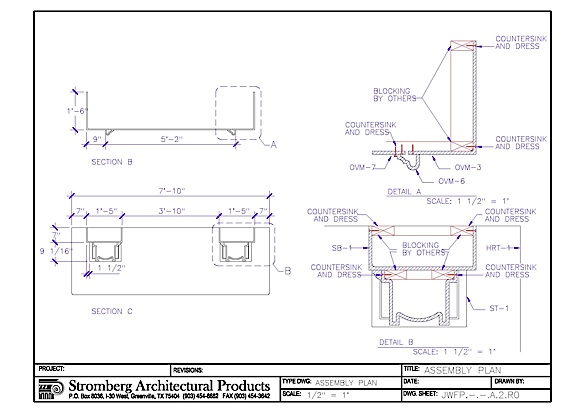

JWFP.-.-.A.2.R0 | Countersink assembly |
|
|
||||
|

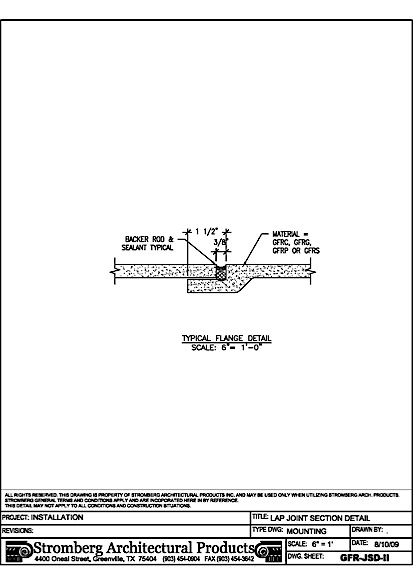

Lap Joint – Section Detail | Cross-section lap joint caulking |
All |
|
|
|||
|

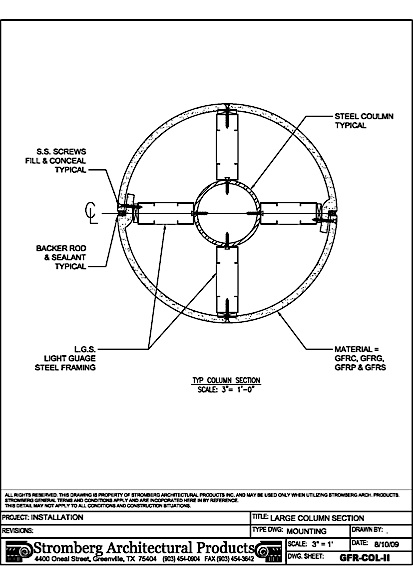

Large Column – Section | Top view cross-section of column mounting |
All |
|
|
|||
|
Large Pilaster – Section | Fuax pilaster mounting in gfrc and gfrg |
All |
|
|
|||
|

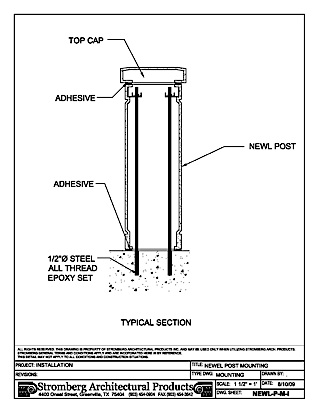

Newel Post – Mounting | All |
|
|
