Installation
| Thumbnail(click to enlarge) | Filename | Description | Material | Height | Diam | Download DWG | Download PDF | Download RFA |
|---|---|---|---|---|---|---|---|---|
|

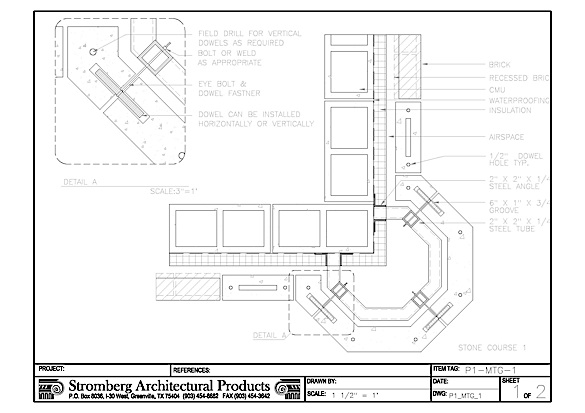

P1_MTG_1 | Decorative corner piece mounting |
|
|
||||
|

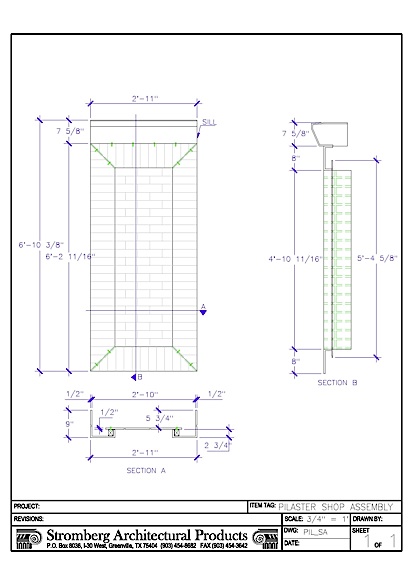

PIL_SA | Pilaster shop assembly layout |
|
|
||||
|
R3_MTG | Recess mounting of cornice panels |
|
|
||||
|

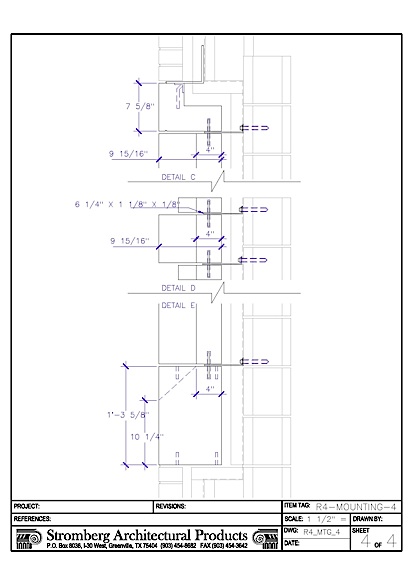

R4_MTG_4 | Various detail drawings of cornice mounting |
|
|
||||
|

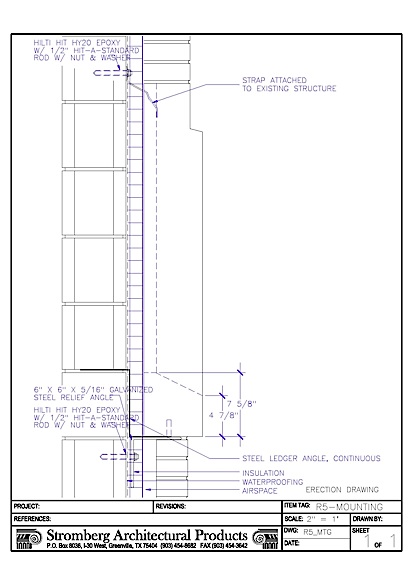

R5_MTG | Erection drawing of cornice mounting |
|
|
||||
|

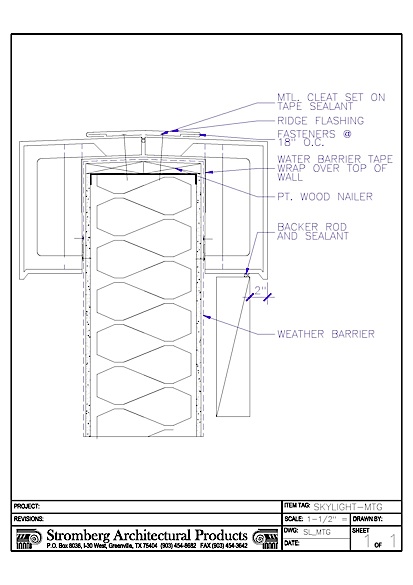

SL_MTG | Skylight flange detail drawing |
|
|
||||
|

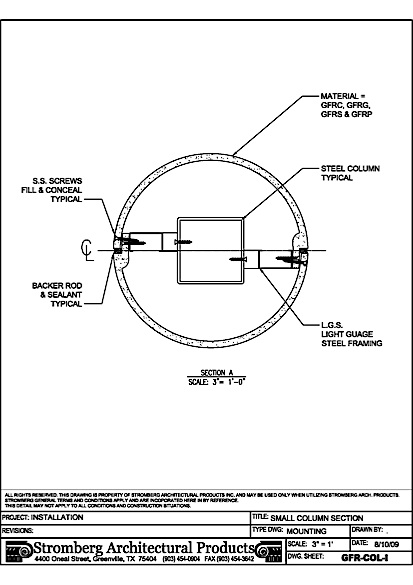

Small Column – Section | Top view cross-section of column mounting |
All |
|
|
|||
|
Small Pilaster – Section | Fuax pilaster mounting in gfrc and gfrg |
All |
|
|
|||
|

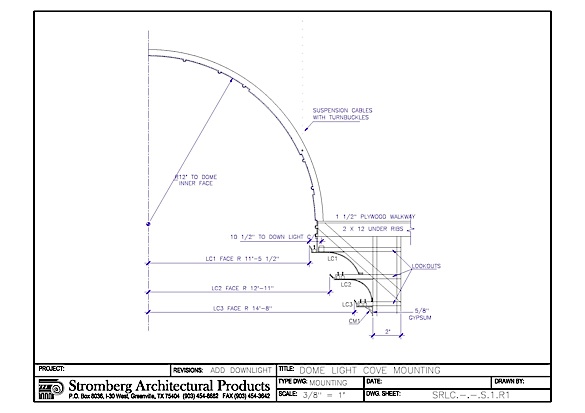

SRLC.-.-.S.1.R1 | Light cove mounting for dome |
|
|
||||
|

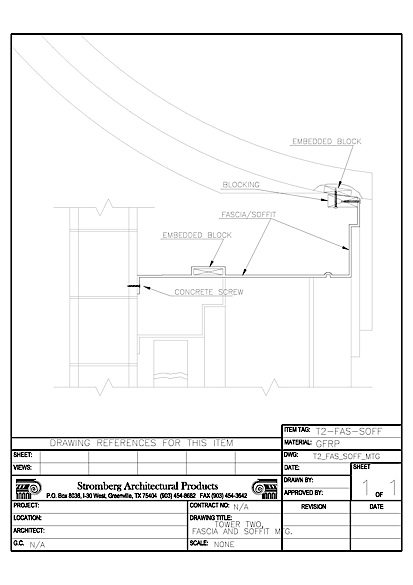

T2_FAS_SOFF_MTG | GFRP screw points for mounting |
|
|
